1. Place your new workbench on top of a table with the cardboard seam facing up. Open the carton. Do not remove the cardboard yet. |
 |
| |

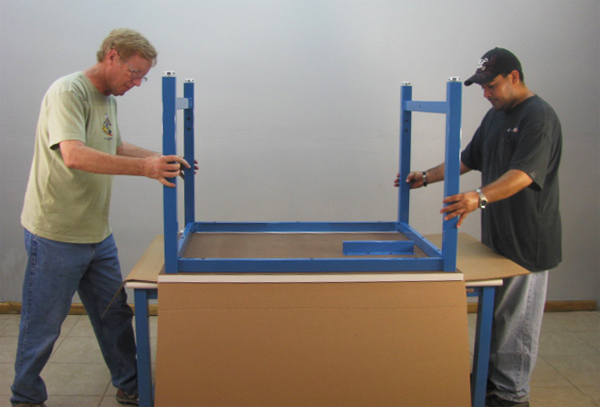

2. Position the legs. If you have a lot of benches to do, we recommend two man teams. If you have Static Control benches, make certain the wrist strap jack is on the front side of the leg. |
 |
| |

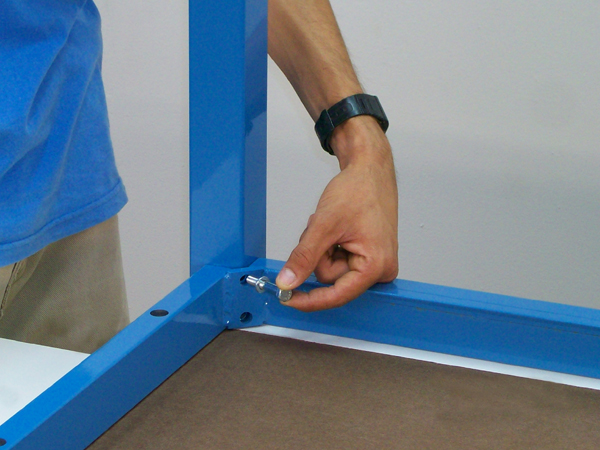

| 3. Insert two screws with lock washers into each leg. |
 |
| |

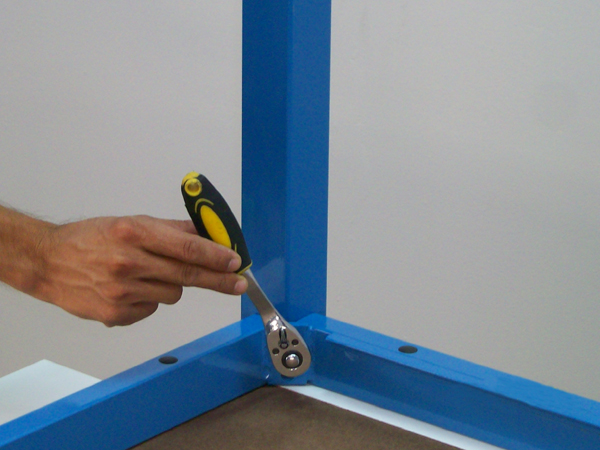

| 4. Tighten until lock washer is flat. It doesn't have to be tighter than that. |
 |
| |
5. If you ordered drawers or CPU holders, assemble them next. (Go to their individual web site pages for instructions if needed. (benchdepot.com) |
| |

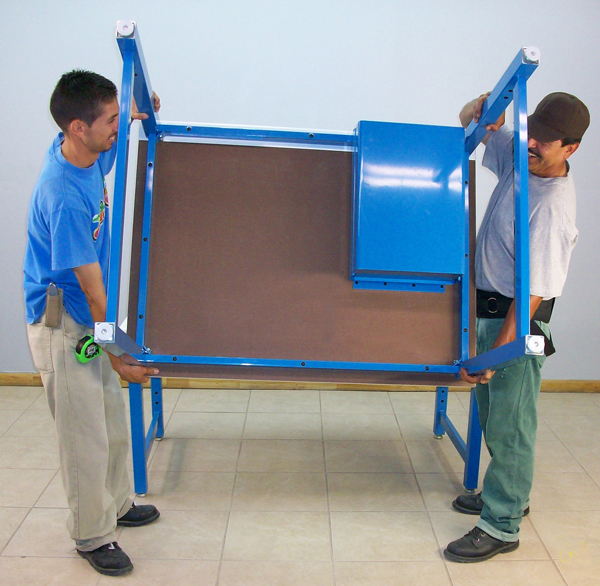

6. You're done. Turn it over. Its easier and safer with two men. Toss out the cardboard. View drawer and other options pages for their assembly. |
 |
| |
| |
